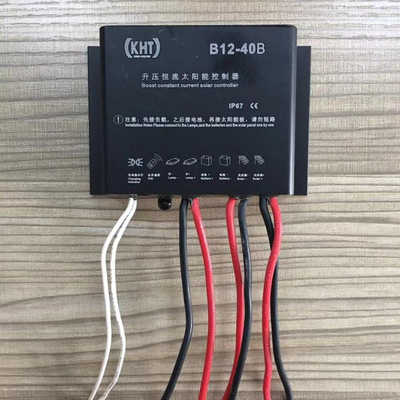

Charger Controller PWM 30w 40w 3.2v to Driver High Input Solar Charge 3.7v Regulator High Voltage Solar Controller

200 Pieces
MOQ
$4.64(200 - 999 Pieces) $4.34(1000 - 4999 Pieces) $3.84(>=5000 Pieces)
Prix
Charger Controller PWM 30w 40w 3.2v to Driver High Input Solar Charge 3.7v Regulator High Voltage Solar Controller
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Model Number: B12-30A-controller
Type: PWM
Application: Charger Controller
Work Time (h): 5000
Max PV Power: 36w
Max PV Voltage: 36v
Product name: PWM Solar Charge Controller
Control Mode: Light+Time Control Mode
Working Temperature: -35-60
Charging current: 8A
Protection Function: PTC Protection
Efficiency: 85%
Warranty: 2 Years
Solar panel: 12V/70W
Output voltage: 20-36VDC
Weight: 250g
Informations de base
Model Number: B12-30A-controller
Conditions de paiement et expédition
Packaging Details: gift box and carton package
Description de produit
Product Description
charge management with indicator
6.4v-12.8v battery sharing
external infrared and human sensing
boost conversion efficiency 92-95%
timing dimming function
maximum charging current 8A
automatic power reduction
time and voltage control

maximun power 40w
Model
30w(30v)
Application
36w 15-70v(led 3v 10 series)
Input Voltage
9-30VDC
Over charger portection
with PTC protection
Max charging current
8A
Static power
<10ma(including radar sensor),<3ma(without radar sensor)
Max output power
36w
Output voltage
20-36VDC
Max charge conversion efficiency
85%
Output current error
3%
Output current
5-1000ma(programmable)
Max solar panel
70w 12v
Max solar panel voltage
DC40VDC
Over-charging protedction voltage
14.4VDC(programmable)
Over-discharge voltage
10.6VDC(programmable)
Exit under voltage protedction
DC9-32v(adjustable)
Working temperature/charging mode
can customized tempertarue protection
Working model
light controlling,time controlling,output current adjustable in 4 time intervals
Weight/Dimensions
250g/98*76*18mm
Product Features
1.realizing peak coversion efficiency 96%
2.light controlling,time controlling and output power dimmable in 4 time intervals
3.integration with led driver,so the led light can't have  driver
4.automatically recognize voltage
5.full protection function
6.temperature compensation to battery
7.excellent waterproof protection
8.standing high/low temperature:our controller can work stably for a long time at the temperature from -35℃ to 60℃
9.optional function one:the controller can automatically drop load's power when battery is lowest,the output power is low
10.optional function two:the controller can adjust the working time automatically in different seasons.In winter,the working time becomes long,while in summer,the working time becomes short automatically.
Solar controller application product
