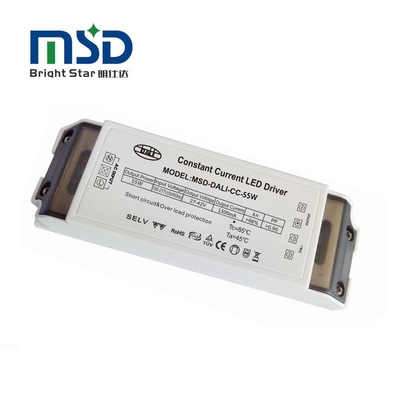

LED lighting indoor led lighting IP40 1050ma dali led driver flame retardant dimming led driver in KNX 55W 1.3A DALI dimmable led driver

1 Piece
MOQ
$18.80(1 - 499 Pieces) $18.20(500 - 999 Pieces) $17.60(>=1000 Pieces)
Prix
LED lighting indoor led lighting IP40 1050ma dali led driver flame retardant dimming led driver in KNX 55W 1.3A DALI dimmable led driver
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Model Number: MSD-DALI-CC-55W-IP40-1
Output Power: 55W
Output Type: Single
Input Voltage: AC 85-265V
Output Frequency: 50/60Hz
Output Current: 1.3A
Color: White
Dimension: 155*53*30mm(L*W*H)
Weight: 180g
Protection: Short Circuit
Efficiency: 85%
PF: 0.95
Certificate: CE SAA ETL TUV CCC
Warranty: 5 years
Application: LED Lighting
Type: DALI Dimmable led driver
Informations de base
Certification: CE SAA ETL TUV CCC
Model Number: MSD-DALI-CC-55W-IP40-1
Conditions de paiement et expédition
Packaging Details: Pack in small box and carton
Description de produit
Product Description

Parameter

Brand
Bright star
Output Power
60W Max
Output current
1200mA/1000mA
Input Voltage Range
170-265V AC
Current precision
±5%
AC Current(Typ)
0.38A@180VAC 0.34A@200VAC 0.30A@230VAC 0.26A@264VAC
Output voltage
27-42V   45-60V
Frequency Range
50/60Hz
Full-loading Efficiency
>88%
PFC
PF>0.90@220V
Short Circuit
Short circuit protection / Over voltage protection
Storage
-40-+85℃,10-95%RH
Over Voltage
<265VAC
Temperature Coefficient
±0.03%/℃(0~50℃)
Operation Temperature
-20-+45℃
Vibration Resistance
10~500HZ,2G 10Min/period,X,Y,Z line per 60 mins
Operation Humidity
20-90%
Standard
Refer to EN 61347-1;EN 61347-2-13; EN 62493

Feature

1,The output current is constant,Stable output, good performance.
2,Using active built-in PFC techology,Energy saving, high power utilization, no pollution to the power grid.
3,Protection:SCP/OVP/OCP,Eliminate safety hazards
4,Fireproof plastic case,Insulation fire protection
5,Fit for KNX/Tridonic/Siemens/Philips/Feelux system;
6,Noise free flicker free
7,Certification:CE/ROHS/SAA/TUV passed;CE/ROHS/SAA/TUV
8,DALI IEC62386 design,compatible with DALI V1&V2;
9,5 Years warranty,lifespan>50,000hrs.Don't worry about after sales.

More Type

Detailed Images
Application

Certificate

Our Company

Established in 2008, Shenzhen Bright Star Lighting Co.,Ltd is a rapidly growing up exported-oriented high-tech enterprise as well as a company of energy saving&carbon reducing during development encouraged by "Twelve-Five planning" of Chinese government,with many years development and innovation,we have been approved by lots of famous companies from domestic and overseas and built long-term strategic cooperation relationships!

We are in a chain of R&D,professional production,sales and after-sale service,covering wide range of different kinds of LED drivers/power supplys such as outdoor waterproof LED drivers, indoor LED drivers,0-10V dimmable LED drivers, DALI LED drivers,WIFI,Bluetooth,Zigbee controlled LED drivers, and now striding forward to intelligent lighting conforming to trend of "internet of things" ,our products are mainly used in led street light, LED tunnel light, LED flood light, spot light, panel light and high-power led lamps etc,the projects we mainly do are hotels,hospitals,schools,plant greenhouse,animal breeding-house,fishing boats etc.

We are oriented by requests of customers,with "responsibility,passion,innovation,high efficiency"as our style,with"cooperation,integrity,win-win,long-term"as our ideas,with"quality&service first" as our principle,until now,our customers are from more than 150 countries covering Europe,North America,South America,Australia,especially our dimmable LED drivers and intelligent controlling LED drivers are the top popular products in the market,in addition,we have applied for lots of certificates such as LVD,SAA,ETL,CCC...more and more customers of meanwell,MOSO have come to us and built long-term cooperation relationships.

We always do believe"whatever is worth doing is worth doing well".

Hongkong Exhibiton

Charity Events

Packing & Delivery

More Product

Constant voltage 600W waterproof LED driver power supply

Constant current 150W waterproof dimming LED driver power supply

Constant current 24W dimming LED driver power supply

Our Service


FAQ

1. Are you a factory or a trade company?
We are a professional muafacturer specialized in LED driver/LED power supply for 8 years.
OEM &ODM is available, such as watts, output current/voltage, length/plug of cable, label...


2. Do you have MOQ requirement?
No MOQ. We would like to offer samples for customer to test first.


3. Shipping time
We always have materials in Stock, the delivery time is very short.
Regarding to the samples, we have samples and materials in stock..
Samples:1-3 days, big order:5-10days


4. Service
We have a professional service team to solve all the questions and problems. No worry about the after-sales service.


5. How about your R&D capability?
We have professional engineers for cetificates and research&development. Recently, we have passed SAA TUV ETL and updated DALI LED driver series.


6. Can I buy the products with my own logo?
Sure. OEM/ODM is available.


7. Is there any discount for large qty?
We provide discount based on the qty and can also bear the freight cost.
